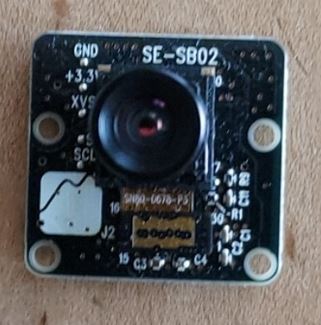

The Raspberry Pi 5 now has MIPI 4-lane connectivity, and our SE-SB02/SE-SB02R board can achieve this functionality.
![Image]()
SE-SB02 has dedicated 2.8V LDO to support AF module. (independent from AVDD 2.8V LDO to avoid interference.)
IMX219 4-lane driver patch is available as follows.
viewtopic.php?t=381663#p2287696
https://lore.kernel.org/linux-media/202 ... rrypi.com/
The lens module on V2 camera can be used and we have various lens option including lens-less module working with M12 lens mount.
IMX219 supports x4 times frame rate in 2x2 binning mode with keeping the original FoV.
(120fps@1640x1232 in 4-lane operation, Can be faster by over clocking.)

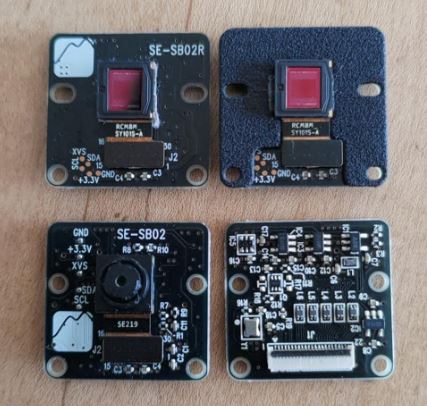

Our camera boards are supporting 4-lane mode and latest product:SE678FF91 is mounted on this board.
![Image]()
Our SE327MBD, SE-SB2M-IMX462, SE-SB2M-IMX662 are supporting 4-lane mode, too
Please contact us from below.
https://soho-enterprise.com/page-28/
SE-SB02 has dedicated 2.8V LDO to support AF module. (independent from AVDD 2.8V LDO to avoid interference.)
IMX219 4-lane driver patch is available as follows.
viewtopic.php?t=381663#p2287696
https://lore.kernel.org/linux-media/202 ... rrypi.com/
The lens module on V2 camera can be used and we have various lens option including lens-less module working with M12 lens mount.
IMX219 supports x4 times frame rate in 2x2 binning mode with keeping the original FoV.
(120fps@1640x1232 in 4-lane operation, Can be faster by over clocking.)
Our camera boards are supporting 4-lane mode and latest product:SE678FF91 is mounted on this board.
Our SE327MBD, SE-SB2M-IMX462, SE-SB2M-IMX662 are supporting 4-lane mode, too
Please contact us from below.
https://soho-enterprise.com/page-28/
Statistics: Posted by sohonomura2020 — Sat Jan 25, 2025 2:21 am
